50/55HP farm tractor TT504TT554 4*4 4wheel drive Agricultural farm equipment

Product Categories

Shandong Katop Machinery Co.,Ltd.

Contact Now

Name: 5055HP farm tractor TT504TT554 44 4wheel drive Agricultural farm equipment
Brand: KATOP
Price: 1 USD

Brand Name : KATOP

Model Number : TT504/TT554

Certification : CE

Place of Origin : Shandong

MOQ : 8 units

Payment Terms : L/C, T/T

Supply Ability : 300 UNITS per month

Delivery Time : 15 days

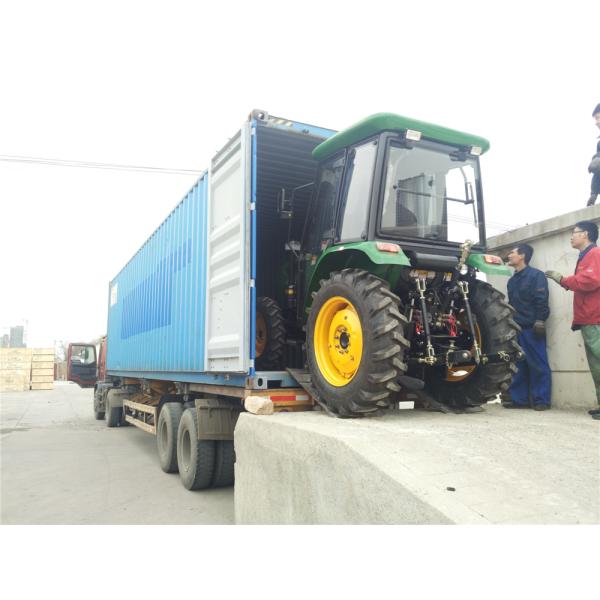

Packaging Details : Iron frame in 20GP container

Engine : YUCHAI 498 TURBO

Power : 36.7KW (50HP)/40.4KW(55HP)

Driving Type : 4*4

Weight : 2.285ton

Dimension : 3579×1750×2105mm

Clutch : 10 inch , Dry-type, Double-acting

Gear box : 12F+12R

Size of Tire : Front:8.3-20 Rear: 12.4-28

Wheel base : 2016mm

Min.Ground Clearance : 325mm

Contact Now

MODEL	TT504	TT554
DRIVE TYPE	4x4	4x4
ENGINE
ENGINE	YUCHAI 498 Turbo	YUCHAI 498 Turbo
OIL TANK(L)	38	38
Rated speed (r/min)	2400	2400
ENGINE RATED POWER (Kw)	36.7	40.4
MIN OIL CONSUPTION(g/kw·h)	≤242	≤242
Minimum fuel consumption at full load( L/h)	7.71	8.49
TRANSMASSION
CLUTCH	10 inch dry, double-acting clutch	10 inch dry, double-acting clutch
PTO SPPED(rpm)	540&720	540&720
SHAFT	12F+12R	12F+12R
HYDRUALIC VALVE	1-Way	1-Way
Three point linkage
lifting force at 610mm KN	＞16	＞16

Technical parameters
Dimension LxWxH mm	357917502105	357917502105
WEIGHT(KG)	2285	2285
WHEEL BASE(mm)	2016	2016
FRONT TREAD(mm)	1300	1300
REAR TREAD(mm)	1300	1300
MIN GROUND CLEARENCE (mm)	325	325
FRONT WHEEL	8.3-20	8.3-20
REAR WHEEL	12.4-28	12.4-28
EXW	$9230	$9540

50/55HP farm tractor TT504TT554 4*4 4wheel drive Agricultural farm equipment

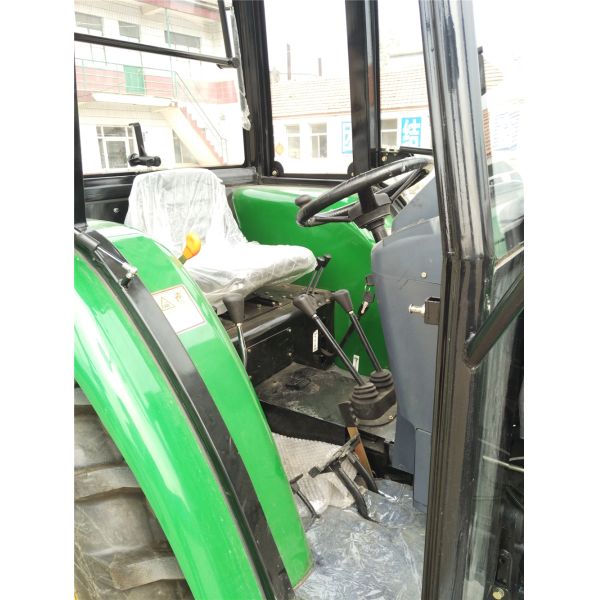

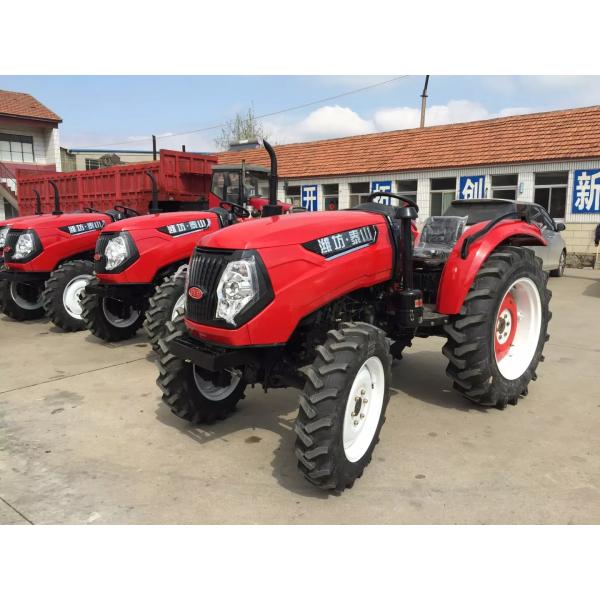

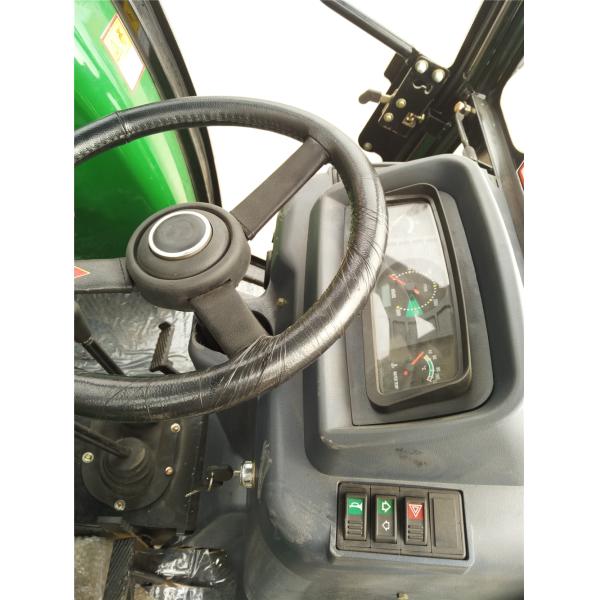

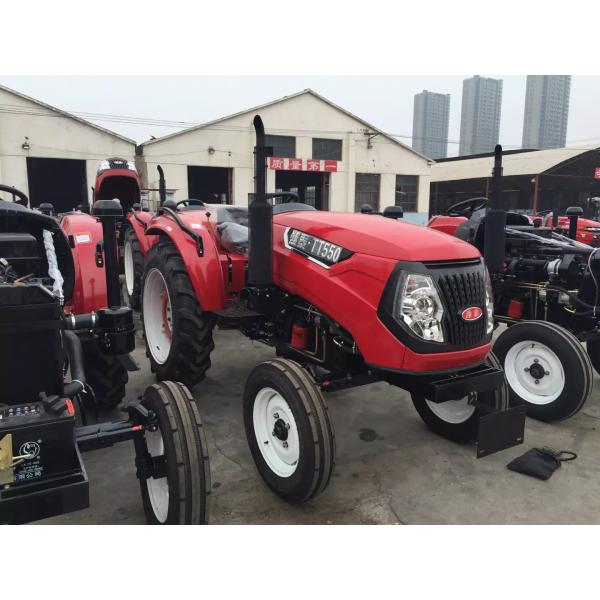

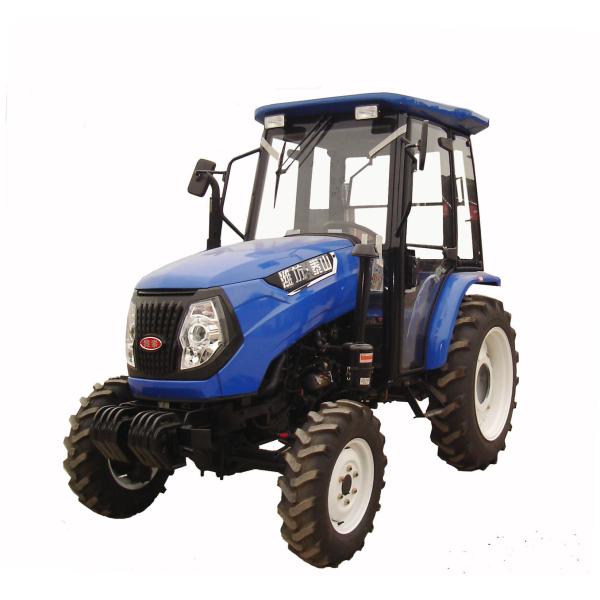

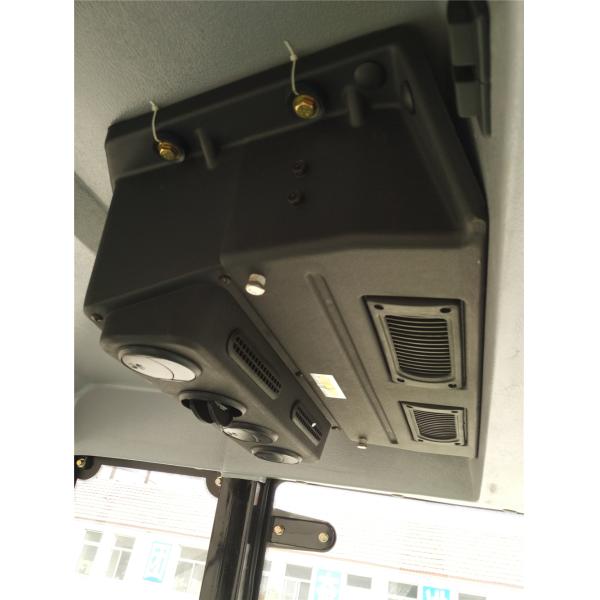

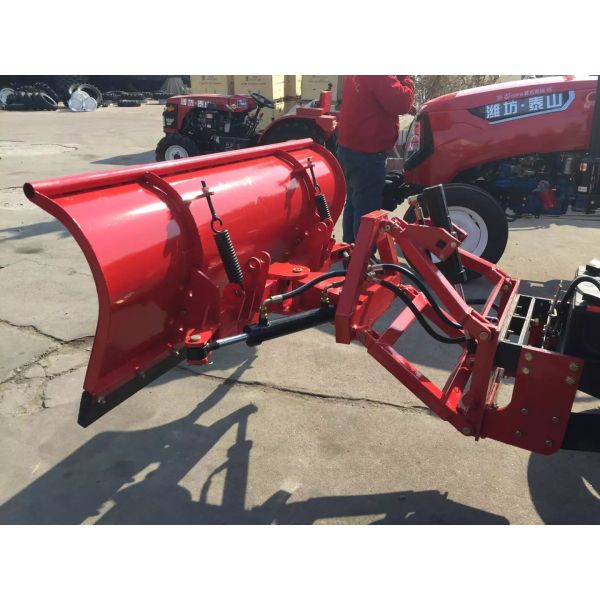

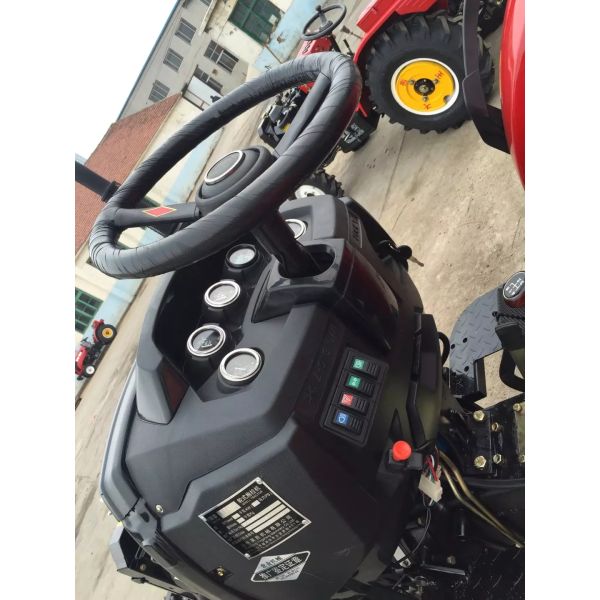

50/55HP farm tractor TT504TT554 4*4 4wheel drive Agricultural farm equipment Images
